FIBC (flexible intermediate bulk container) is a term used for the large sized bags or can say bulk bag, are extensively used flexible fabric containers in industries for storing or transporting of the valuable products, including sand, granules, plastic, fertilizer and similar products.

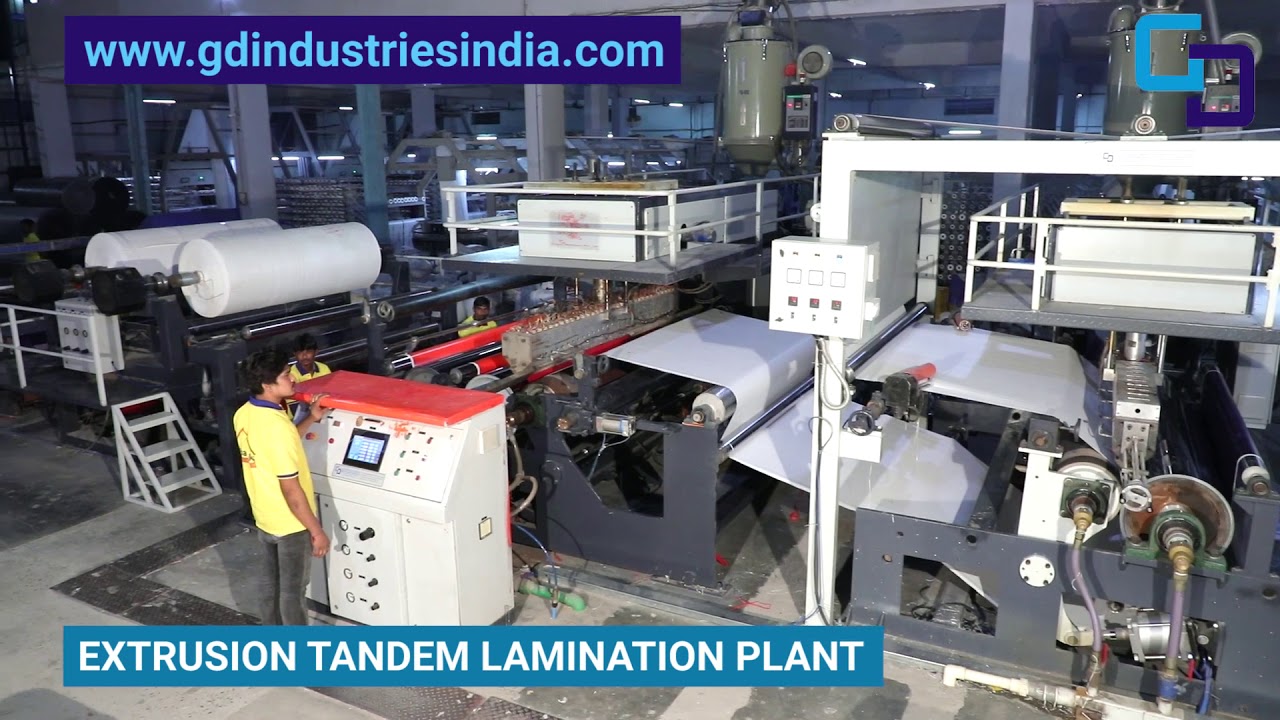

With an intention of giving the considerable strength to this FIBC, we introduce the FIBC jumbo lamination plant, a plant that laminates the FIBC bags at the cost effective rates. As the offered lamination plant is specifically designed to laminate large size bags, it is also renowned as the wide width lamination plant in India. The employment of the cutting edge technology in conjunction with the adherence to the international quality standards have helped us to carry out the best in class range of the FIBC jumbo lamination plant that performs coating (PP /LDPE) on the respective FIBC bags at the high speed and delivers excellent results at the cost effective rates. As name implies, our wide width lamination plant is competent to coat up to 3150mm width coating on any type of material, including paper, woven fabrics, jute, cotton, etc and promise for the superior quality of coating that last forever.
| MODEL | SCREW DIA MM | DIE WIDTH MM | MAX COATING WIDTH MM | OUT PUT KG/HR | MAX LINE SPEED MPM | COATING THICKNESS MICRON |
|---|---|---|---|---|---|---|
| GDLAM3300 | 90 | 3300 | 3150 | 275-325 | 90 | 20-100 |
| GDLAM4200 | 90 | 4200 | 20405080 | 275-325 | 90 | 20-100 |
| GDLAM J 1700 | 80 | 1700 | 1550 | 170-180 | 60 | 20-100 |
| GDLAM J 2200 | 80 | 2200 | 2080 | 170-180 | 60 | 20-100 |
